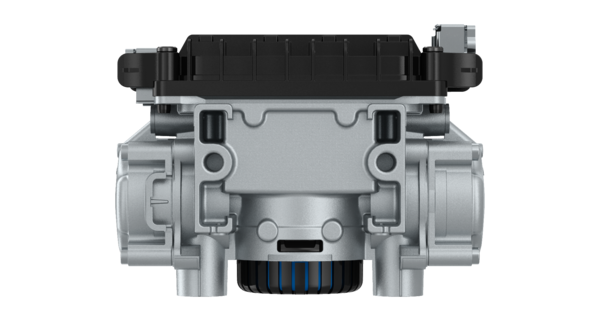

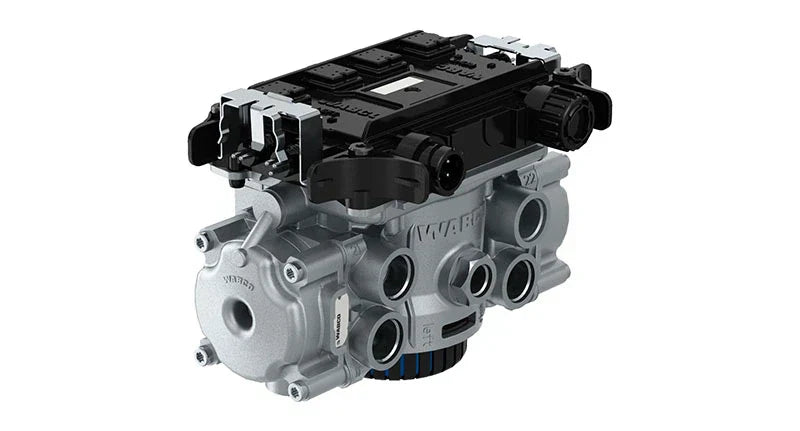

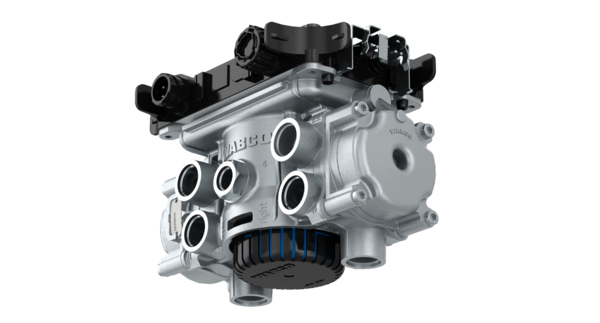

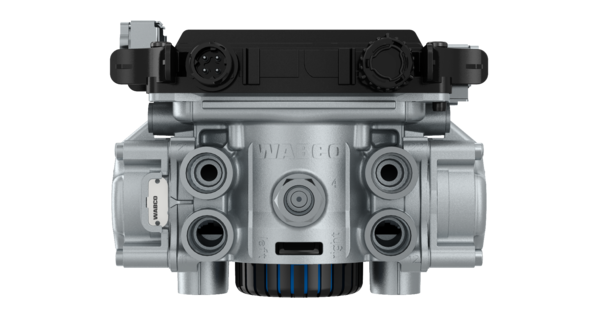

4801040080 WABCO Electronic Braking System Truck Modulators

4801040080 WABCO Electronic Braking System Truck Modulators

WABCO Electronic Braking System Truck Modulators 4801040080/3454403450/595307M000 For DAF

• Brand: WABCO
• Part type: Premium original quality
• Application: AA 2S 2M 2W
• Calculated Volume (dm³): 4.6286
• Comments: Volume production modification
• Distance between holes: 100 mm
• Electrical connection: Bayonet DIN 72585 1A-4.1-Sn/K2
• Max. operating pressure: 12.5 bar
• Mounting: 2x M12 x 1.5
• Port thread 11: M22 x 1.5 JED - 388-4
• Port thread 12: M22 x 1.5 JED - 388-4
• Port thread 21: M22 x 1.5 JED - 388-4
• Port thread 22: M22 x 1.5 JED - 388-4
• Port thread 3: Integrated Silencer
• Port thread 4: M16 x 1.5 JED - 388-4
• Product category: Device
• Protection class: IP 6K6K, IP 6K9K
• Rated current: 10 A
• Technical specification: OE specification
• Temperature range: -40°C to +80°C
• Type: Drive axle 2S 2M 2W
• Voltage: 24 V
• Size (mm x mm x mm): 221 x 136 x 154
• UPC: 193133317678
• Weight (kg): 3.051
• Weight (lb): 6.7263
